CNC Turret Punching Machine/Automatic Hole Punching Machine/CNC Punch Press Price for sale

  • 1 - 1 Sets
    $45,000.00
  • >=2 Sets
    $43,000.00
Nominal Force (kN):
300
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 35 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
CNC
Machine Type:
PUNCHING MACHINE
Power Source:
Mechanical servo
Place of Origin:
Shandong, China
Brand Name:
QINGDAO AMADA
Voltage:
220V/380V/415V/440V
Dimension(L*W*H):
4800*2600*2050 mm
Certification:
CE / ISO9001 / BV, CE, ISO9001, BV, SGS
Motor Power (kW):
13
Model Number:
AMD
Weight (T):
14
Key Selling Points:
Competitive price
Applicable Industries:
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Construction works , Energy & Mining, Advertising Company
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
United States, philippines, indonesia, pakistan, INDIA, RUSSIA, UAE
Showroom Location:
United States, philippines, indonesia, pakistan, INDIA, RUSSIA, UAE
After-sales Service Provided:
Engineers available to service machinery overseas
CNC Controller:
Siemens, Fanuc, Rexroth, IPC
Export Countries:
USA, UK, Russia, Australia, Iran. Brazil etc
Warranty:
12 Months after installation, 12 Months
Delivery:
40' high cube container
Nibbling:
600 hpm
Maximum process sheet:
5000*1500 mm
Maximum sheet thickness:
6 mm
Machine colour:
Customize
Nominal Force (kN):
300 kN
Supply Ability
Supply Ability:
280 Set/Sets per Year CNC Turret Punching Machine
Packaging & Delivery
Packaging Details
AMD-2510 Siemens System CNC Turret Punching Machine/Automatic Hole Punching Machine/CNC Punch Press Price for sale
20' Open Top Standard Container With Stretch Film
Port
Qingdao
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 35 To be negotiated
Video Description
Product Description

CNC Turret Punching Machine/Automatic Hole Punching Machine/CNC Punch Press Price for sale







Product Catagory
ModeItem
AMD-357 close type CNC turret punching machine (Siemens system)
AMD-SE2510/3510 servo type CNC punching machine  (Fanuc system)



 Specification



Unit

AMD-357

Transmission mode

/

Hydraulic

Mechanical

Punch force

KN

                       300

Power rating

KW

20

11

Processing sheet size

mm

2500*1250

2500*1250

Processing sheet
thickness

mm

≤6

≤6

Max. Punch diameter

mm

88.9

88.9

Sheet moving speed

m/min

40

40

Punching frequency

hpm

600

260

Hole accuracy

mm

±0.1

±0.1

Number of stations
in turret

No.

16/24/32

16/24/32

Turret speed

rpm

30

30

Controlled axis

No.

3/4

3/4

Rotating location

No.

0/2

0/2

Air pressure

Mpa

≥0.8

≥0.8

Outline Dimension

mm

4490*5300*2110

4490*5300*2110

Machine Weight

T

11

10



Unit

AMD-SE2510/3510

Punch Force

KN

250

Max. Processing Size

mm

2500*1250

Max. sheet Thickness

mm

6

2

Max. Punch Diameter

mm

Φ40

Φ88.9

Max. Traversing Speed

m/min

40

Max. Punch Hit

hpm

1700

Power Rating

KW

20

Voltage Rating

V

380±5%

Hole Accuracy

mm

±0.1

Number of stations in turret

No.

24/32

Turret Speed

rpm

30

Controlled Axis

No.

5

Air Pressure

Mpa

0.6

Outline Dimension

mm

5010*3300*2250

Machine Weight

T

13



 Product Pictures Show




Machinery details

Machinery main details:

O Type Welding Fuselage with Tempering Treatments;

Siemens and Fanuc System;

AMADA Standard 80mm Ductile Iron Thick Turret DISC and AMADA Standard Tools;

Taiwan Ball Screw & Linear Guide;

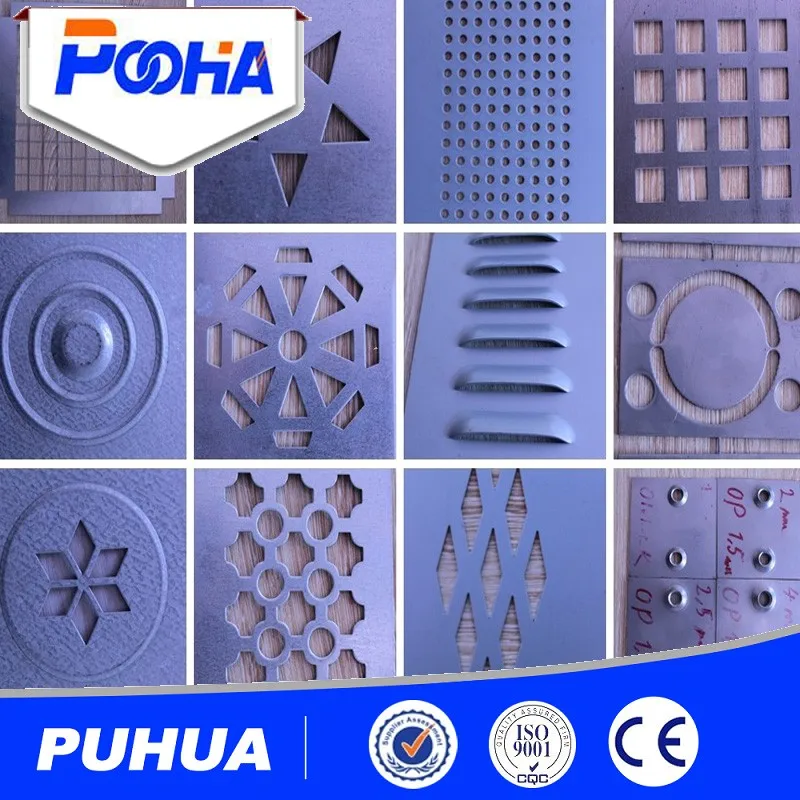

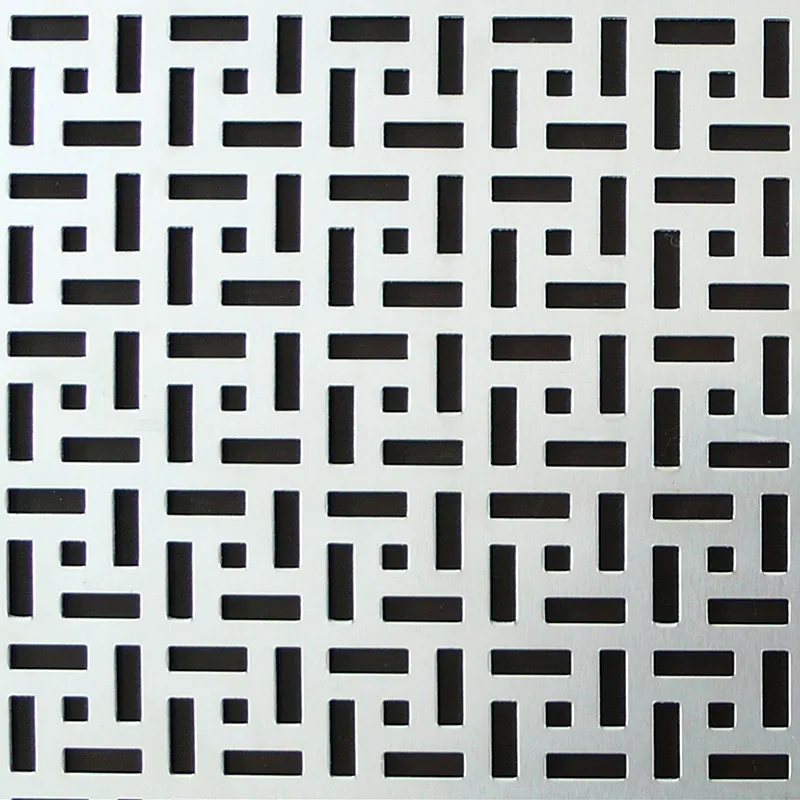

The Punching Sample




Advantages

1.Professional system USES Siemens and Fanuc brand,cooperate with digital ac servo motor, faster response speed, higher reliability, convenient operation, no need manual programming, equipped with secondary positioning function, clamp can implement a dead zone machining automatic collision avoidance.



2. Double C type frame using Japanese technology, the machine drawing processing, effectively eliminate the internal stress, increased the equipment rigidity, reduce the deformation.



3. Flywheel built-in, crankshaft, longitudinal sliding sleeve type on illegal stamping with imported clutch more often, and appearance is more beautiful.



4. Using AMADA casting and AMADA one-piece thick 2-foot-tall tower the mold standard thick turret international general mold.



5. Servo motor, linear guide, ball screw, pneumatic components and electrical components are imported brand.



6. Equipped with automatic centralized lubrication system, all lubricating points can realize the automatic centralized lubrication, effectively extending the service life of the equipment.



Hot sales

Contact Us
Our Services

1. Installation and commissioning issue:

We will send 1-2 technicians to assist with machine installation and commissioning,

customer  pays for their tickets, hotel and diet, etc Customer need arrange

3-4 skilled worker and prepare insallation machinery and tools.

2. Warranty time:

12 months from date of commissioning completion,  but no more than 18 months from date of delivery.

3. Supply full English documents:

including foundation drawings, manual book, electric wiring diagram, electric manual book and maintenance book,etc.
