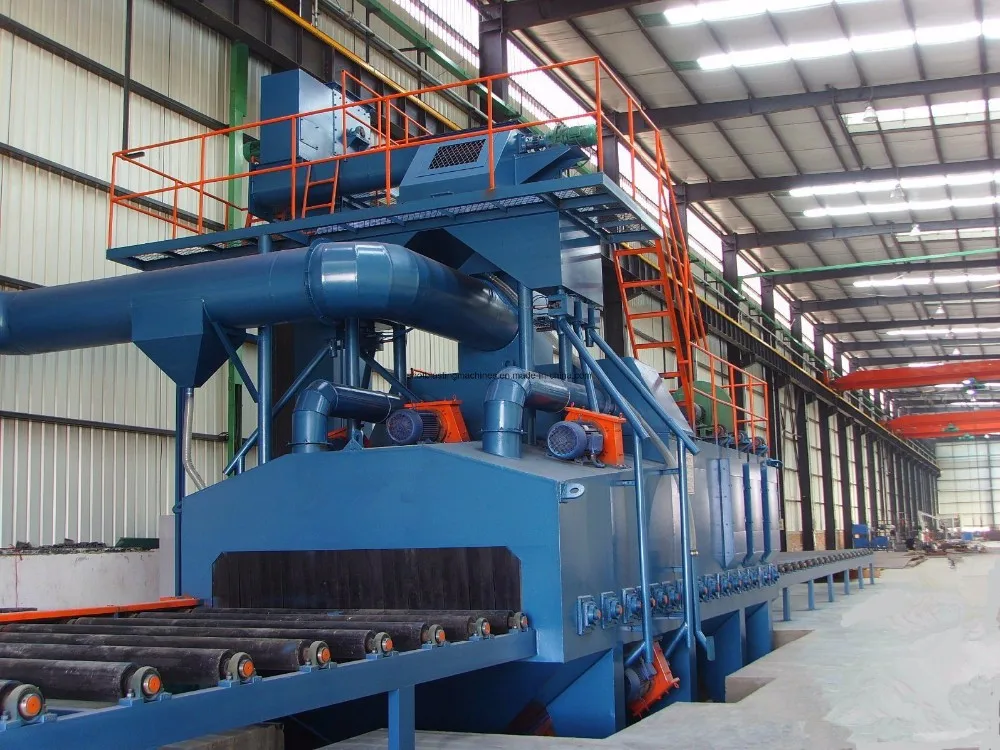

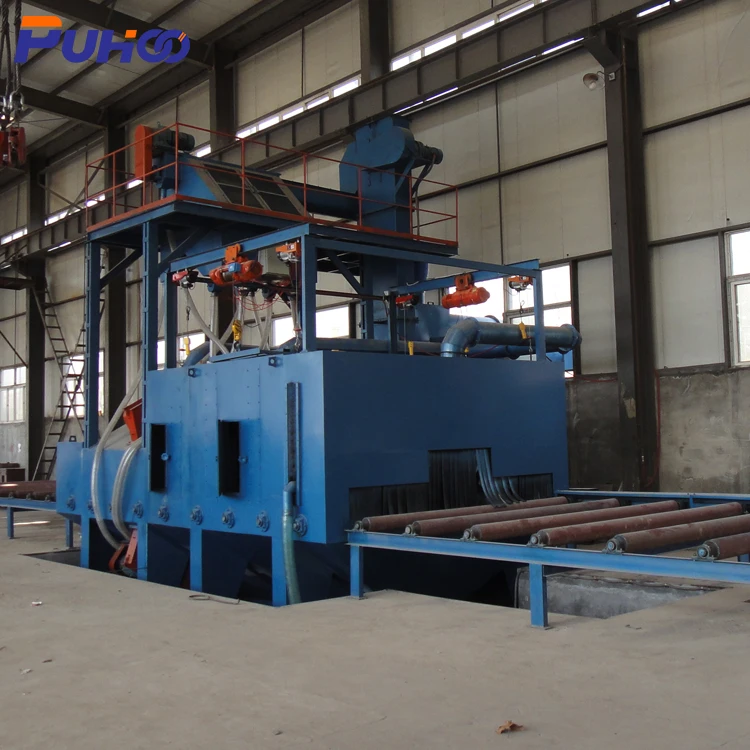

Q69 Automatic H Beam Dust Blaster Shot Blasting Machine / Sandblasting machine

  • 1 - 1 Sets
    $9,000.00
  • >=2 Sets
    $8,800.00
Feature:
Non-Ionic Non-Toxic Rust / Corrosion Inhibitor
Industry Used:
Electronic Industry
Model Number:
Q69
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 35 Negotiable
Report Suspicious Activity
Overview
Quick Details
Machine Type:
Abrator
Condition:
New
Place of Origin:
china
Brand Name:
puhua
Fuel:
Electric
Certification:
ce, GS, CB
Cleaning Process:
steel shot
Cleaning Type:
Clean-In-Place (CIP)
Material:
Metal / Coil
Power(W):
22kw
Dimension(L*W*H):
According to workpiece size
Warranty:
1 YEAR
After-sales Service Provided:
Online support, Engineers available to service machinery overseas
Applicable Industries:
Hotels, Garment Shops, Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction works , Food & Beverage Shops
Name:
roller shot blasting machine
Type:
pass cleaning
Blast wheel:
4 sets
Color:
Customers Requirement
Function:
shot blasting
Blast chamber:
Mn 65 Steel
workpiece size:
800*10000mm
workpiece thickness size:
4.5-800mm
Supply Ability
Supply Ability:
200 Set/Sets per Year roller shot blasting machine
Packaging & Delivery
Packaging Details
container
Port
qingdao
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 35 To be negotiated
Product Description
Parameter
Q698
Q6925
Q6940
The effective cleaning width(mm)
800
2500
4000
Dimesion of inlet opening
1600*800
2700*800
4200*400
The length of cleaning workpiece(mm)
1200-12000
3000-12000
4500-18000
The thickness of cleaning steel sheet (mm)
3-60
3-60
4.5-100
Air capacity(m3/h)
22000
27758
38000
Total power (kw)
90
204.8
293.6

Main Features

1. Inlet roller
2. Pre-heating chamber
3. Shot blasting chamber
4. Sweeping chamber
5. Abrasive/ shot balls circulation system
6. Shot cycle purifying system
7. Shot dust collecting system
8. Painting chamber
9. Drying chamber
10.Fume filter and harmful gas purifying device
11.Outlet roller
12.Electric control system

Main product
Certifications

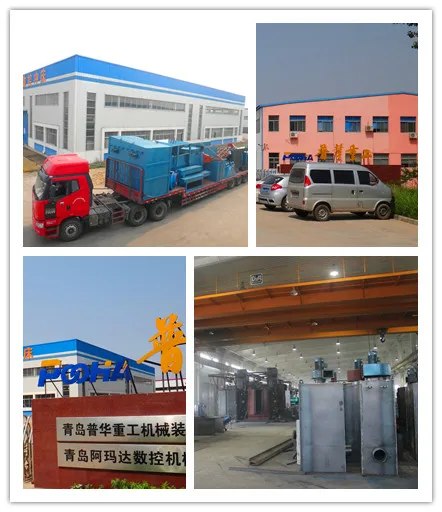

Our Company

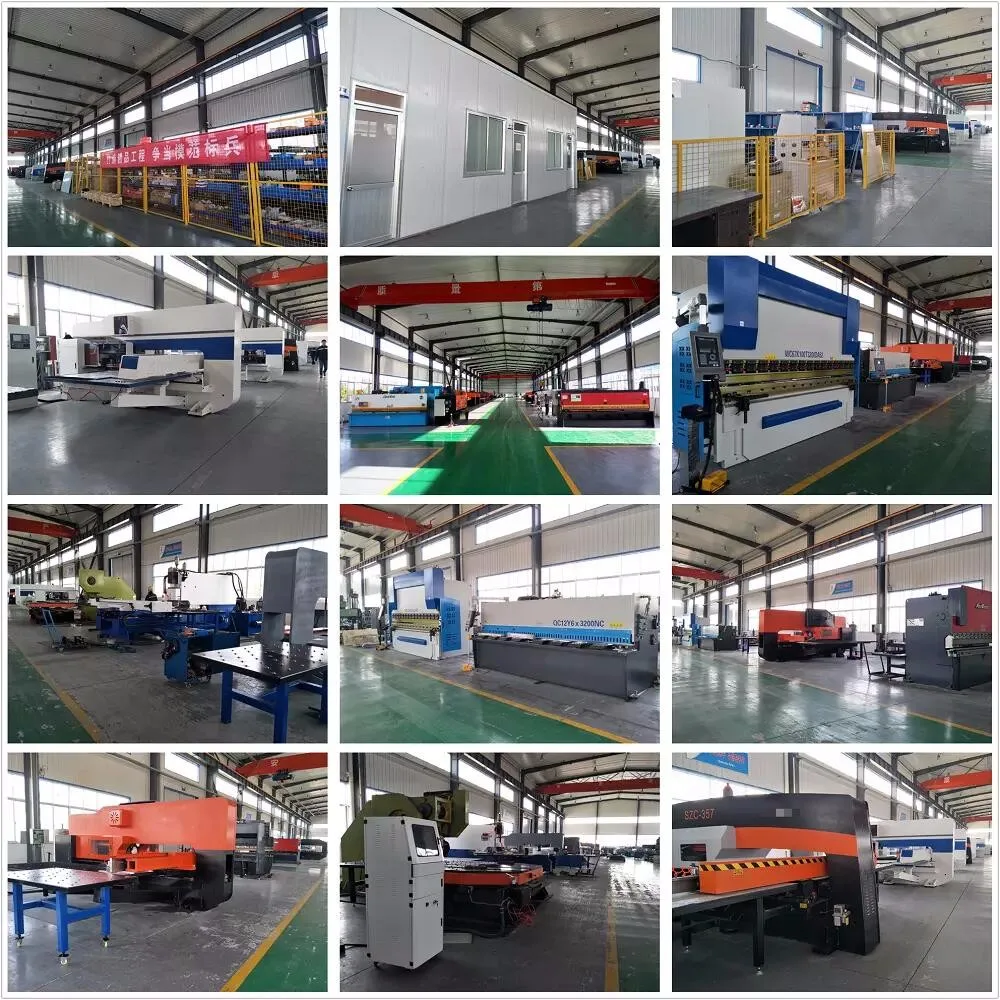

Qingdao Puhua Heavy Industrial Group was established in 2006.It focus on design, research, development, manufacturing and export of sand blasting booths, sand processing equipment, environmental protection equipment, a variety of shot blasting machine, including roller conveyor type, overhead chain type, hook type, tumble belt type, wire mesh type, road surface type etc. All products are professionally designed by our highly-experienced engineers with Auto CAD.

Our Service

1. Installation and commissioning issue:
We will send 1-2 technicians to assist with machine installation and commissioning,
customer pays for their tickets, hotel and diet, etc Customer need arrange
3-4 skilled worker and prepare insallation machinery and tools.
2. Warranty time:
12 months from date of commissioning completion, but no more than 18 months from date of delivery.
3. Supply full English documents:
including foundation drawings, manual book, electric wiring diagram, electric manual book and maintenance book,etc.

Our Customer
Packing&shipping
