HOT Product High Quality Hydraulic 30mm Thick Plate CNC Punch Machine

  • 1 - 1 Sets
    $40,000.00
  • >=2 Sets
    $39,000.00
Nominal Force (kN):
40T-160T
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Nominal Force (kN):
300
Machine Type:
cnc punching machine, cnc punching machine
Return Force (kN):
200 kN
System:
normal
Condition:
New
Place of Origin:
Shandong,China(Mainland)
Brand Name:
Puhua
Voltage:
Customized
Dimension(L*W*H):
Customized
Certification:
CE,ISO
Weight (T):
13 T
Model Number:
AMD-HB
Motor Power (kw):
20 kw
Key Selling Points:
Automatic
Warranty:
1 YEAR
After-sales Service Provided:
Field installation, commissioning and training
After Warranty Service:
Video technical support, Online support
Applicable Industries:
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction works
Local Service Location:
INDIA, south africa
Showroom Location:
INDIA, south africa
Marketing Type:
Hot Product 2019
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
1 YEAR
Core Components:
MOTOR, PLC, Gearbox
CNC or Not:
CNC
Power Source:
cnc punching
Product name:
Hydraulic Thick Plate CNC Turret Punching Machine
Keyword:
Hydryalic Press
Application:
Metal Sheet
Name:
Hydraulic Punch Press Machine
Function:
Steel Metal Punching
Color:
Customized
Motor Power (kW):
20
Product Certification certification
CE Certified.
Valid from 2017-12-21 until 2022-12-21
Supply Ability
Supply Ability:
300 Set/Sets per Year

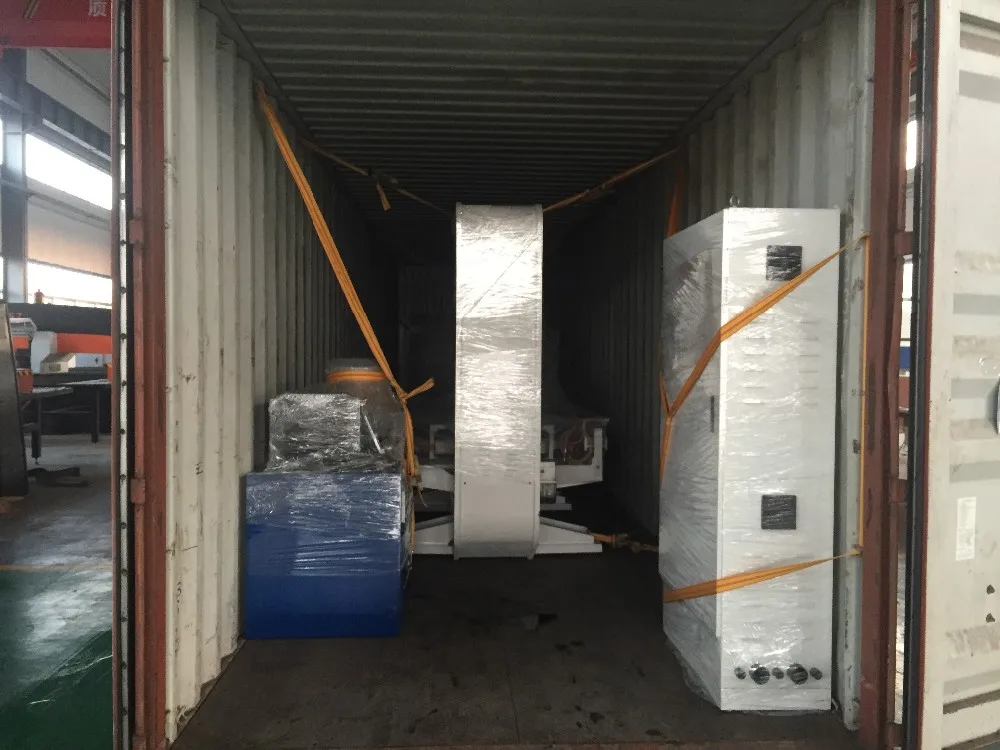

Packaging & Delivery
Port
Qingdao
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated

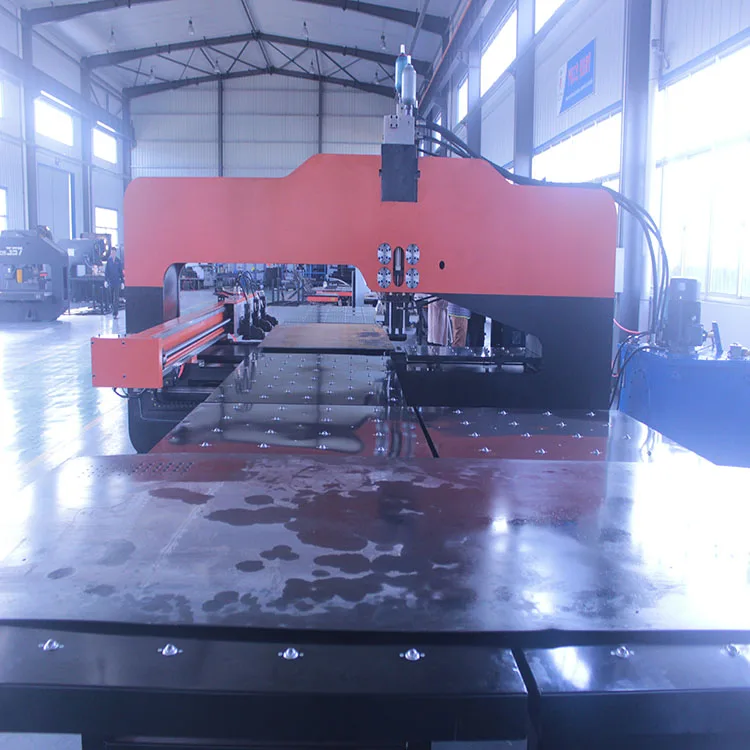

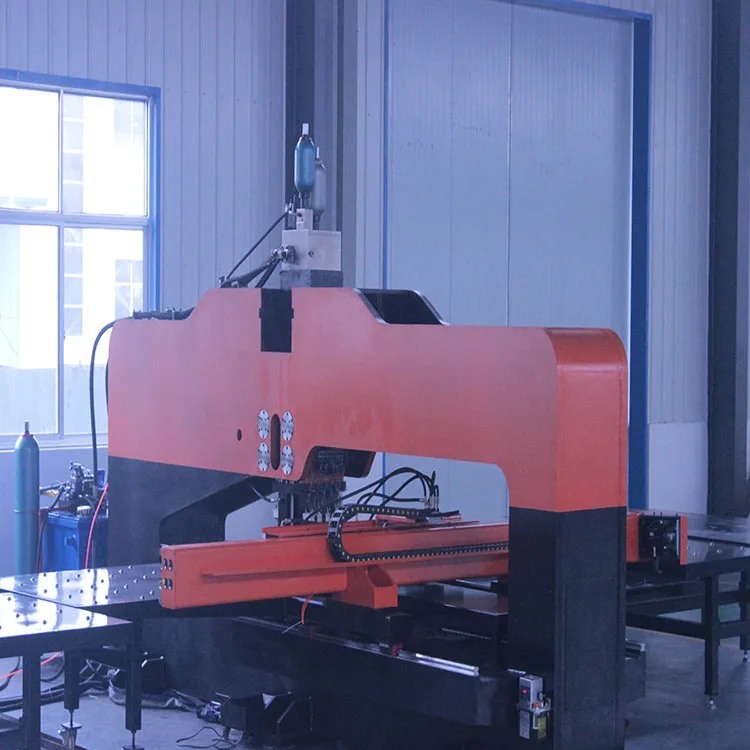

Thick Plate 35mm Hydraulic Power Press Punching Machine

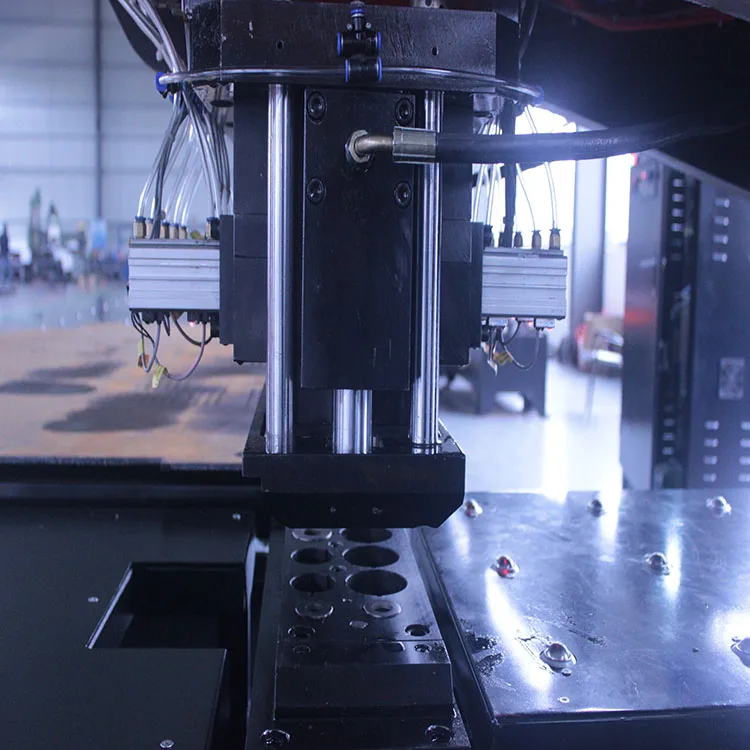

Main Features •Using in-line type die set which researched and developed by our company, matching with thick plate stamping dedicated mould, the processing sheet thickness can up to 16mm; •Equipped with high precision hydraulic main transmission system, speed is faster, stroke is adjustable; •Adopts Siemens CNC special system and match up digital AC servo motor to make it faster and reliable, operation is easy, no need manual programming and processing, with the second positioning function, can achieve no dead zone processing; •Equipped with concentrated lubricating device, reduce each kinematic pair friction, improve machine service life.
Type
AMD-HB40
AMD-HB50
AMD-HB60
AMD-HB80
AMD-OHB80
AMD-OHB100
AMD-OHB120
AMD-OHB160
Punch force
40T
50T
60T
80T
80T
100T
120T
160T
Machine structure

                        open type

                          closed type
Max.Processing thickness

                                                                       35mm
Working
Range
                                                           1500*800mm/3000*1600mm
Clamp
amount
                                                                        2-3pcs
Punching
frequency
         120HPM
                 80HPM
    80HPM
 80HPM
 80HPM
 60HPM
Turret
speed
                                                                        ≤40m/min
Processing
precision
                                                                        ±0.15mm
Air Ventilation
                                                                         0.1m³/min
Air
pressure
                                                                         0.5MPa(5.0kgf/cm²)
Power
                                                                         380V±5%/50HZ
Number of stations in turret
                                                                         3-12pcs(Optional)

CNC Turret Punching Machine can complete all the hole shapes currently required on the market, and can perfectly complete the work that normal punching machine can't do. It is a kind of equipment that is preferred by sheet metal work manufacturers. With the increasing demand for plate hole shape in the market, Turret Punch Press is an essential equipment for the future plate punching industry.

CNC Turret Punching Machine can complete all the hole shapes currently required on the market, and can perfectly complete the work that normal punching machine can't do. It is a kind of equipment that is preferred by sheet metal work manufacturers. With the increasing demand for plate hole shape in the market, Turret Punch Press is an essential equipment for the future plate punching industry.

1. Installation and commissioning issue:
We will send 1-2 technicians to assist with machine installation and commissioning,
customer pays for their tickets, hotel and diet, etc Customer need arrange
3-4 skilled worker and prepare insallation machinery and tools.
2. Warranty time:
12 months from date of commissioning completion.
3. Supply full English documents:
including foundation drawings, manual book, electric wiring diagram, electric manual book and maintenance book,etc.

Advantages: 1. Inspected by the Inspection Institution of Bureau Veritas Certification. 2. 100% QC inspection Before Shipment. 3. Customized, Meet your needs. 4. Good stability, Low failure rate (technical maturity, technical precipitation, skilled workers),Exquisite appearance (mature craft). 5. Large factories, Prompt delivery. 6. Strict quality inspection department. 7. Over 10 years' production experience. 8. Professional design team to serve you. 9. CE certificate assure you our qualit. Key point : 1. Production time: 25-30 days CNC punch machine. 2. Installation and commissioning time: 7-14 days. 3. Installation and commissioning issue: We will send 1,2 technicians to assist machine installation and commissioning, customer pays for their tickets, hotel and diet. 4. Warranty time:12 months from date of commissioning completion, but no more than 18 months from date of delivery. 5. Payment term: 30% as down payment, 70% balance before delivery or L/C at sight. 6. We supply full english documents, including general installation drawing, pit design drawing, manual book, electric wiring diagram, electric manual book and maintenance book, etc. *Please contact us if you wish to know more details*


Qingdao Puhua Heavy Industry is established in 2006,total registered capital over 8500000 dollar,total area nearly 50000 square meter. The company owns four subsidiary corporation:Qingdao Puhua Heavy Industrial Machinery Co.,Ltd;Qingdao AMADA Numerical Control Technology Co.,ltd;Qingdao Puhua Dongjiu Heavy Industrial Machinery Co.,ltd and Shandong JiTran International Intelligent Equipment Co.,ltd.We are the National High-tech enterprise,collection equipment and other industrial reserach and development.
